71/2 J X 17
Pay attention to wheels/tires assignments for respective engine versions which are listed in the overview table.
| Explanatory notes of indications on disc wheels: | Refer to DISC WHEELS . |
| Tightening specifications for wheel bolts: | Refer to WHEEL BOLT TIGHTENING SPECIFICATION . |
| Pitch circle diameter: | 112 mm |
| Number of wheel bolt holes: | 5 |
It is Possible To Mount 7 1 / 2 J X 17-Wheels Only Under The Following Conditions:
- Sport suspension VI (sport suspension except for 18-inch wheels) must be installed in the vehicle. For the PR number and adjustment values for the suspension, refer to: VEHICLE DATA LABEL

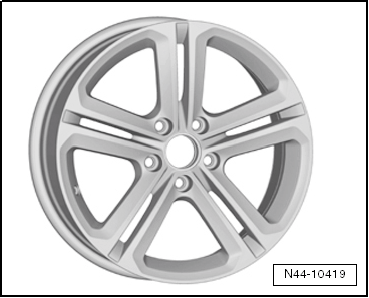

5K0 601 025 N - Aluminum Rim "MALLORY"
Observe the Conditions for Mounting, Refer to It is Possible To Mount 71/2 J X 17-Wheels Only Under The Following Conditions: .
| Dimension: | 71 /2 J x 17 |
| Offset (mm): | 51 |
| Wheel load in kg: | 630 |

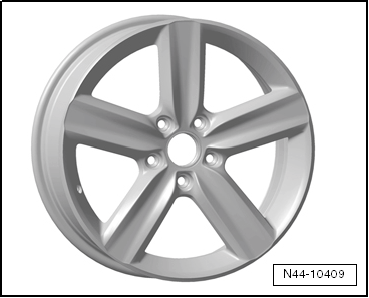

5K0 601 025 G - Aluminum Rim "AVIGNON II"
Observe the Conditions for Mounting, Refer to It is Possible To Mount 71/2 J X 17-Wheels Only Under The Following Conditions: .
| Dimension: | 71 /2 J x 17 |
| Offset (mm): | 51 |
| Wheel load in kg: | 630 |

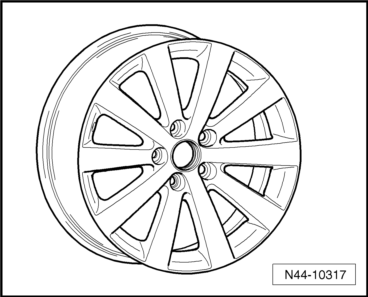

5K0 601 025 AD - Aluminum Rim "SALAMANCA"
Observe the Conditions for Mounting, Refer to It is Possible To Mount 71/2 J X 17-Wheels Only Under The Following Conditions: .
| Dimension: | 71 /2 J x 17 |
| Offset (mm): | 51 |
| Wheel load in kg: | 630 |
1K0 601 025 BB, 1K0 601 025 AC - Aluminum Rim "DENVER"
Observe the Conditions for Mounting, Refer to It is Possible To Mount 71/2 J X 17-Wheels Only Under The Following Conditions: .
| Dimension: | 71 /2 J x 17 |
| Offset (mm): | 51 |
| Wheel load in kg: | 615 |
1K0 601 025 BK - Aluminum Rim "OMANYT"
Observe he Conditions for Mounting, Refer to It is Possible To Mount 71/2 J X 17-Wheels Only Under The Following Conditions: .
| Dimension: | 71 /2 J x 17 |
| Offset (mm): | 51 |
| Wheel load in kg: | 615 |
