7 J X 17

NOTE:

Pay attention to wheels/tires assignments for respective engine versions which are listed in the overview table.

Explanatory notes of indications on disc wheels: Refer to DISC WHEELS .
Tightening specifications for wheel bolts: Refer to WHEEL BOLT TIGHTENING SPECIFICATION .
Pitch circle diameter: 112 mm
Number of wheel bolt holes: 5

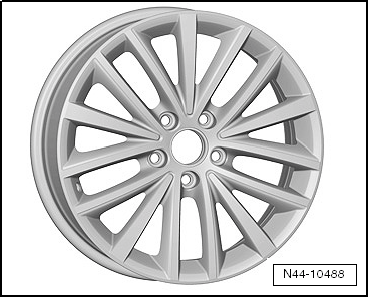

5C0 601 025 A, 5C0 601 025 B - Aluminum Rim "QUEENSLAND"

Fig 1: Identifying 5C0 601 025 A/B Wheel
GWWN44-10488Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 7 J x 17
Offset (mm): 54
Wheel load in kg: 615

5C0 601 025 AH, 5C0 601 025 AJ - Aluminum Rim "QUEENSLAND"

Fig 2: Identifying 5C0 601 025 AH, 5C0 601 025 AJ Wheel
GWWN44-10488Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 7 J x 17
Offset (mm): 54
Wheel load in kg: 615

5C0 601 025 AC - Aluminum Rim "BUENOS AIRES"

Fig 3: Identifying 5C0 601 025 AC
GWWN44-10590Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 7 J x 17
Offset (mm): 54
Wheel load in kg: 615

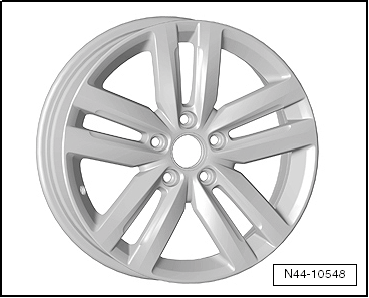

5C0 601 025 K - Aluminum Rim

Fig 4: Identifying 5C0 601 025 K
GWWN44-10548Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 7 J x 17
Offset (mm): 54
Wheel load in kg: 615

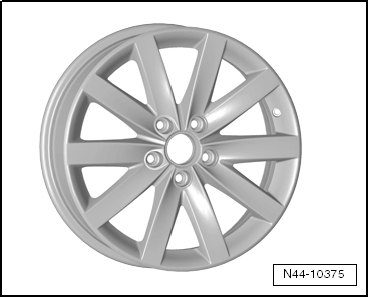

5K0 601 025 F - Aluminum Rim "PORTO"

Fig 5: Identifying 5K0 601 025 F - Wheel
GWWN44-10375Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 7 J x 17
Offset (mm): 54
Wheel load in kg: 615

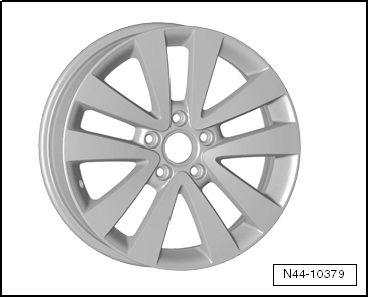

5K0 601 025 K - Aluminum Rim "SEATTLE"

Fig 6: 5K0 601 025 K - Wheel
GWWN44-10379Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 7 J x 17
Offset (mm): 54
Wheel load in kg: 615

5K0 601 025 Q, 5K0 601 025 R - Aluminum Rim "SEATTLE"

Fig 7: 5K0 601 025 Q, 5K0 601 025 R - Wheel
GWWN44-10379Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 7 J x 17
Offset (mm): 54
Wheel load in kg: 615

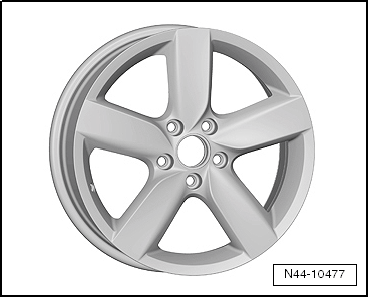

5K0 601 025 AA - Aluminum Rim "ORLANDO"

Fig 8: 5K0 601 025 AA - Wheel
GWWN44-10477Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 7 J x 17
Offset (mm): 54
Wheel load in kg: 615

1K0 601 025 B - Aluminum Rim "ZANDVOORT"

Fig 9: 1K0 601 025 B - Wheel
GWWN44-10160Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 7 J x 17
Offset (mm): 54
Wheel load in kg: 615

1K0 601 025 C - Aluminum Rim "ESTORIL"

Fig 10: Identifying 1K0 601 025 C - Wheel
GWWN44-10161Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 7 J x 17
Offset (mm): 54
Wheel load in kg: 615

1K0 601 025 K - Aluminum Rim "GRAND PRIX"

Fig 11: 1K0 601 025 K - Wheel
GWWN44-10139Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 7 J x 17
Offset (mm): 54
Wheel load in kg: 615

1K0 601 025 M - Aluminum Rim "INDIANAPOLIS"

Fig 12: 1K0 601 025 M - Wheel
GWWN44-10167Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 7 J x 17
Offset (mm): 54
Wheel load in kg: 615

1K0 601 025 AF - Aluminum Rim "SIENA"

Fig 13: Identifying 1K0 601 025 AF - Wheel
GWWN44-10231Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 7 J x 17
Offset (mm): 54
Wheel load in kg: 630

1K0 601 025 AE - Aluminum Rim "AVIGNON"

Fig 14: Identifying 1K0 601 025 AE - Wheel
GWWN44-10234Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 7 J x 17
Offset (mm): 54
Wheel load in kg: 630

1K0 601 025 AN - Aluminum Rim "CLASSIXS"

Fig 15: Identifying 1K0 601 025 AN - Wheel
GWWN44-10163Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 7 J x 17
Offset (mm): 54
Wheel load in kg: 615
