61/2 J X 16

NOTE:

Pay attention to wheels/tires assignments for respective engine versions which are listed in the overview table.

Explanatory notes of indications on disc wheels: Refer to DISC WHEELS .
Tightening specifications for wheel bolts: Refer to WHEEL BOLT TIGHTENING SPECIFICATION .
Pitch circle diameter: 112 mm
Number of wheel bolt holes: 5

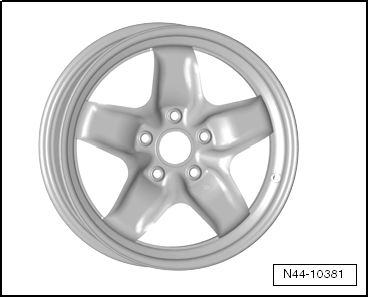

5K0 601 027 - Steel Rim

Fig 1: 5K0 601 027 - Wheel
GWWN44-10381Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 61 /2 J x 16
Offset (mm): 50
Wheel load in kg: 615

1K0 601 027 A, 1K0 601 027 AH - Steel Rim

Fig 2: Identifying 1K0 601 027 A/AH - Wheel
GWWN44-10071Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 61 /2 J x 16
Offset (mm): 50
Wheel load in kg: 615

1K0 601 027 J, 1K0 601 027 K - Steel Rim

Fig 3: Identifying 1K0 601 027 J/K - Wheel
GWWN44-10071Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 61 /2 J x 16
Offset (mm): 50
Wheel load in kg: 615

1K0 601 027 AK - Steel Rim

Fig 4: Identifying 1K0 601 027 AK - Wheel
GWWN44-10071Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 61 /2 J x 16
Offset (mm): 50
Wheel load in kg: 615

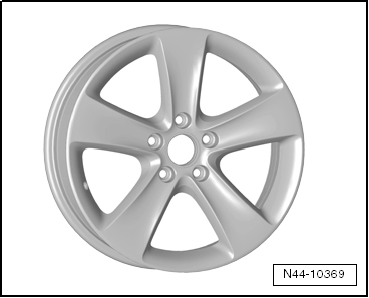

5C0 601 025 - Aluminum Rim "NAVARRA"

Fig 5: Identifying 5C0 601 025 - Wheel
GWWN44-10369Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 61 /2 J x 16
Offset (mm): 50
Wheel load in kg: 615

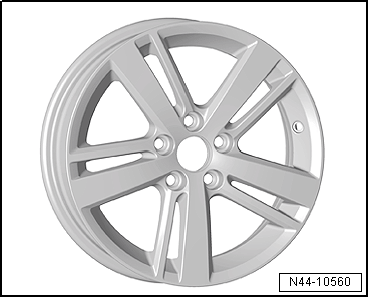

5C0 601 025 AB - "STRATFORD" Aluminum Rim

Fig 6: Identifying 5C0 601 025 AB
GWWN44-10560Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 61 /2 J x 16
Offset (mm): 50
Wheel load in kg: 615

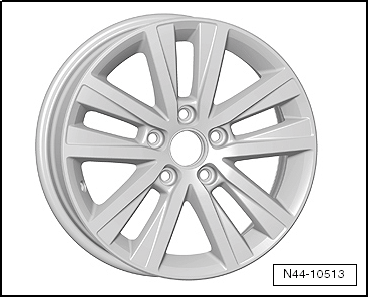

5K0 601 025 AE, 5K0 601 025 AJ - "ESTRADA" Aluminum Rims

Fig 7: Identifying 5K0 601 025 AE/ AJ- Wheel
GWWN44-10513Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 61 /2 J x 16
Offset (mm): 50
Wheel load in kg: 615

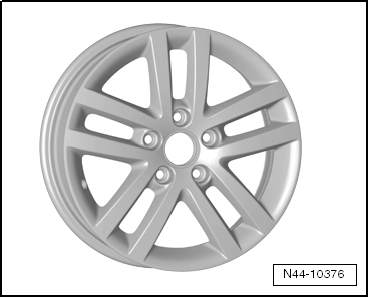

5K0 601 025 E - Aluminum Rim "CLEVELAND"

Fig 8: 5K0 601 025 E - Wheel
GWWN44-10376Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 61 /2 J x 16
Offset (mm): 50
Wheel load in kg: 615

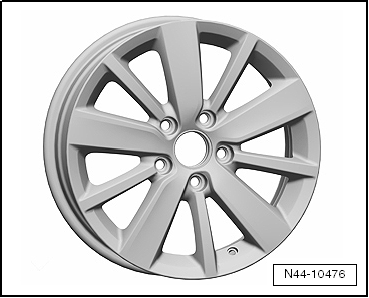

5K0 601 025 S - Aluminum Rim "PESCARO"

Fig 9: 5K0 601 025 S
GWWN44-10476Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 61 /2 J x 16
Offset (mm): 50
Wheel load in kg: 615

1K0 601 025 AJ, 1K0 601 025 BM - Aluminum Rim "ATLANTA"

Fig 10: Identifying 1K0 601 025 AJ/BM - Wheel
GWWN44-10231Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 61 /2 J x 16
Offset (mm): 50
Wheel load in kg: 615

1K0 601 025 BN, 1K0 601 025 CL - "ATLANTA" Aluminum Rims

Fig 11: 1K0 601 025 AF/AJ & 3C0 601 025 R - Wheel
GWWN44-10231Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 61 /2 J x 16
Offset (mm): 50
Wheel load in kg: 615

1K0 601 025 BC, 1K0 601 025 F - Aluminum Rim "TORONTO"

Fig 12: 1K0 601 025 BC
GWWN44-10333Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 61 /2 J x 16
Offset (mm): 50
Wheel load in kg: 615

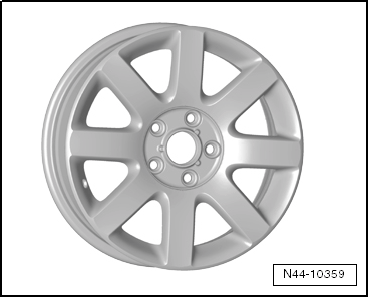

1K0 601 025 BR, 1K0 601 025 R - Aluminum Rim "MAGNY COURS"

Fig 13: Identifying 1K0 601 025 BR/R - Wheel
GWWN44-10359Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 61 /2 J x 16
Offset (mm): 50
Wheel load in kg: 615

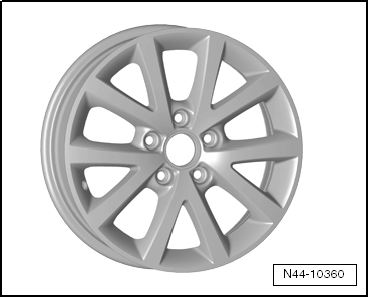

1K0 601 025 BS, 1K0 601 025 CH, 1K0 601 025 CQ - "SEDONA" Aluminum Rims

Fig 14: Identifying 1K0 601 025 BS/CH/CQ - Wheel
GWWN44-10360Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 61 /2 J x 16
Offset (mm): 50
Wheel load in kg: 615

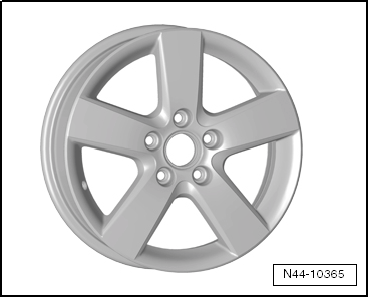

1K0 601 025 CB, 1T0 601 025 G - Aluminum Rim "MUGELLO"

Fig 15: Identifying 1K0 601 025 CB / 1T0 601 025 G - Wheel
GWWN44-10365Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 61 /2 J x 16
Offset (mm): 50
Wheel load in kg: 615

1T0 601 025 M, 1T0 601 025 R - Aluminum Rim "MUGELLO"

Fig 16: Identifying 1T0 601 025 R/M
GWWN44-10365Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 61 /2 J x 16
Offset (mm): 50
Wheel load in kg: 615

1T0 601 025 C - Aluminum Rim "HOCKENHEIM"

Fig 17: 1T0 601 025 C - Wheel
GWWN44-10141Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 61 /2 J x 16
Offset (mm): 50
Wheel load in kg: 615

1K0 601 025 P - Aluminum Rim "SILVERSTONE"

Fig 18: 1K0 601 025 P - Wheel
GWWN44-10215Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 61 /2 J x 16
Offset (mm): 50
Wheel load in kg: 615
