6 J X 17
NOTE:
Pay attention to wheels/tires assignments for respective engine versions which are listed in the overview table.
| Explanatory notes of indications on disc wheels: | Refer to DISC WHEELS . |
| Tightening specifications for wheel bolts: | Refer to WHEEL BOLT TIGHTENING SPECIFICATION . |
| Pitch circle diameter: | 112 mm |
| Number of wheel bolt holes: | 5 |
Winter Tire

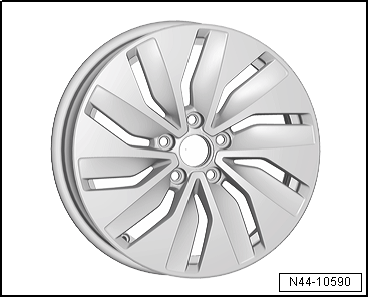

1K0 601 025 N - Aluminum Rim "MERIBEL"
| Dimension: | 6 J x 17 |
| Offset (mm): | 48.5 |
| Wheel load in kg: | 615 |
5C0 601 025 S - Aluminum Rim "BUENOS AIRES"
| Dimension: | 6 J x 17 |
| Offset (mm): | 48.5 |
| Wheel load in kg: | 615 |
