6 J X 15

NOTE:

Pay attention to wheels/tires assignments for respective engine versions which are listed in the overview table.

Explanatory notes of indications on disc wheels:	Refer to DISC WHEELS .
Tightening specifications for wheel bolts:	Refer to WHEEL BOLT TIGHTENING SPECIFICATION .
Pitch circle diameter:	112 mm
Number of wheel bolt holes:	5

1k0 601 027 H, 1k0 601 027 Ag, 5k0 601 027 B - Steel Rims

Fig 1: Identifying 1k0 601 027 H/B - Wheel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1K0 601 027 C, 1K0 601 027 T - Steel Rim

Fig 2: Identifying 1K0 601 027C/T- Wheel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

2K0 601 027 - Steel Rim

Fig 3: Identifying 2K0 601 027 - Wheel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

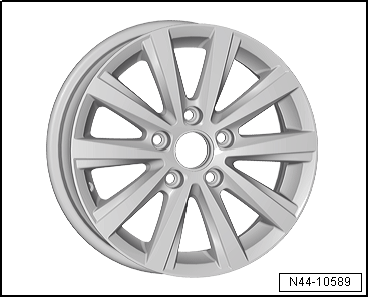

5C0 601 025 Q - Aluminum Rim "LEXINGTON"

Fig 4: Identifying 5C0 601 025 Q- Wheel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
