Front Bumper Cover: Removing
Perform the following:
-- Remove the radiator grille, refer to RADIATOR GRILLE .

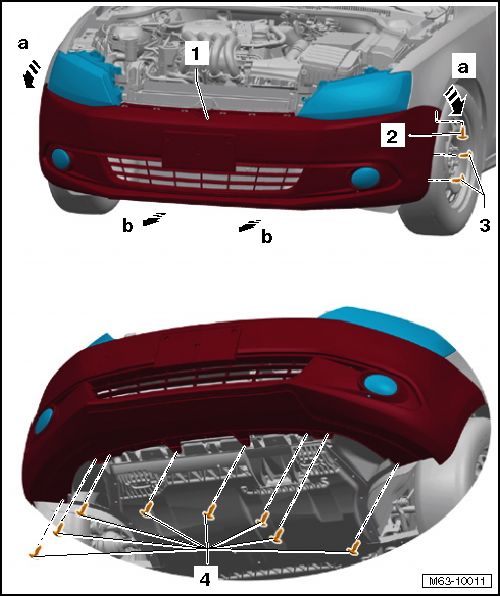

-- Remove the left and right bolts -2- inside the wheel housing (facing up).
-- Remove the left and right wheel housing liner bolts -3-.
-- Remove the bolts -4- from underneath.
A second technician is required for the rest of the removal procedure.
-- Pull the front bumper cover -1- out of the guides on the left and right sides of the fender in direction of -arrows a-.
-- Remove the front bumper cover -1- in direction of -arrows b- from the vehicle. A second technician is needed for this.
-- Disconnect the connectors from any electrical components.
For more information regarding the parking aid, refer to Removal and Installation .
For more information regarding the parallel parking assistance, refer to Removal and Installation .
-- Disconnect the hose coupling on windshield washer fluid hose, refer to Removal and Installation .
