8 X 18

NOTE:

Pay attention to wheels/tires assignments for respective engine versions which are listed in the overview table.

Explanatory notes of indications on disc wheels: Refer to General Information .
Tightening specifications for wheel bolts: Refer to Specifications .
Pitch circle diameter: 112 mm
Number of wheel bolt holes: 5

5N0 601 025 AA - Aluminum Rim "MALLORY"

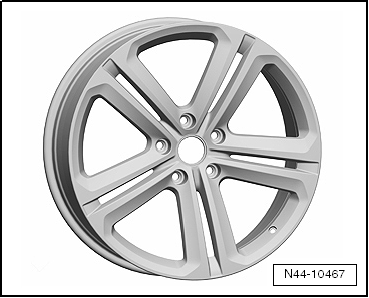

Fig 1: 5N0 601 025 AA - Aluminum Rim "MALLORY"
GWWN44-10467Courtesy of AUDI OF AMERICA, LLC
NOTE:

Only for vehicles with sport chassis and wheel housing extension.

Dimension: 8 J x 18
Offset in mm: 30
Wheel load in kg: 650
