6 1/2 J X 16
NOTE:
Pay attention to wheels/tires assignments for respective engine versions which are listed in the overview table.
| Explanatory notes of indications on disc wheels: | Refer to General Information . |
| Tightening specifications for wheel bolts: | Refer to Specifications . |
| Pitch circle diameter: | 112 mm |
| Number of wheel bolt holes: | 5 |
5N0 601 027 B - Steel Rim
| Dimension: | 6 1 /2 J x 16 |
| Offset in mm: | 33 |
| Wheel load in kg: | 625 |
7N0 601 027 A - Steel Rim
| Dimension: | 6 1 /2 J x 16 |
| Offset in mm: | 33 |
| Wheel load in kg: | 675 |

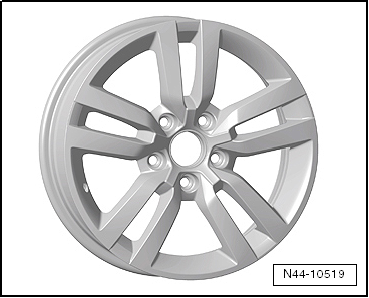

5N0 601 025 - Aluminum Rim "SAN FRANCISCO"
| Dimension: | 6 1 /2 J x 16 |
| Offset in mm: | 33 |
| Wheel load in kg: | 625 |
5N0 601 025 A - Aluminum Rim "SAN DIEGO"
| Dimension: | 6 1 /2 J x 16 |
| Offset in mm: | 33 |
| Wheel load in kg: | 625 |
5N0 601 025 R - Aluminum Rim "PORTLAND"
| Dimension: | 6 1 /2 J x 16 |
| Offset in mm: | 33 |
| Wheel load in kg: | 625 |
