Rear Lid Locking And Unlocking Components Assembly Overview

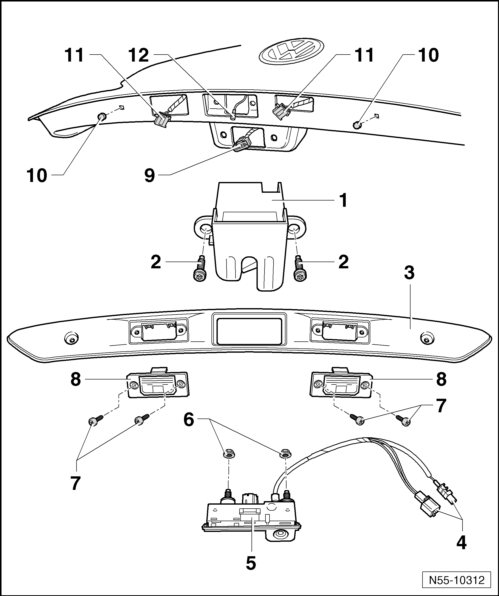

Fig 1: Identifying Rear Lid Locking And Unlocking Components Assembly

Courtesy of AUDI OF AMERICA, LLC

1. Rear lid latch
   • Removing and Installing, refer to REAR LID LOCK
2. Bolt
   • Quantity: 2
   • Tightening specification 23 Nm
3. Grip with button
   • Screw tightening torque: 2 Nm
   • Removing and Installing, refer to GRIP WITH RELEASE BUTTON
4. Connectors
   • for the rearview camera
5. Button
   • The button with rearview camera is shown here
   • Is clipped into the grip
6. Nut
   • Quantity: 2
   • Tightening specification: 4 Nm
7. Bolt
   • 2 each per lamp
   • Tightening specification 1 Nm
8. License plate lamp
9. Connector
   • for lid lock
10. Insert nut
    • Quantity: 2
11. Connector
    • For license plate lamp
12. Connector
    • For the button
