Special Tools And Equipment

• T10007 Refractometer
• V.A.G 1274/8 Adapter
• V.A.G 1306 Drip tray
• VAS 5024 Assembly tool for spring-type clips

not illustrated:

• VAS 6096 Coolant system charging unit

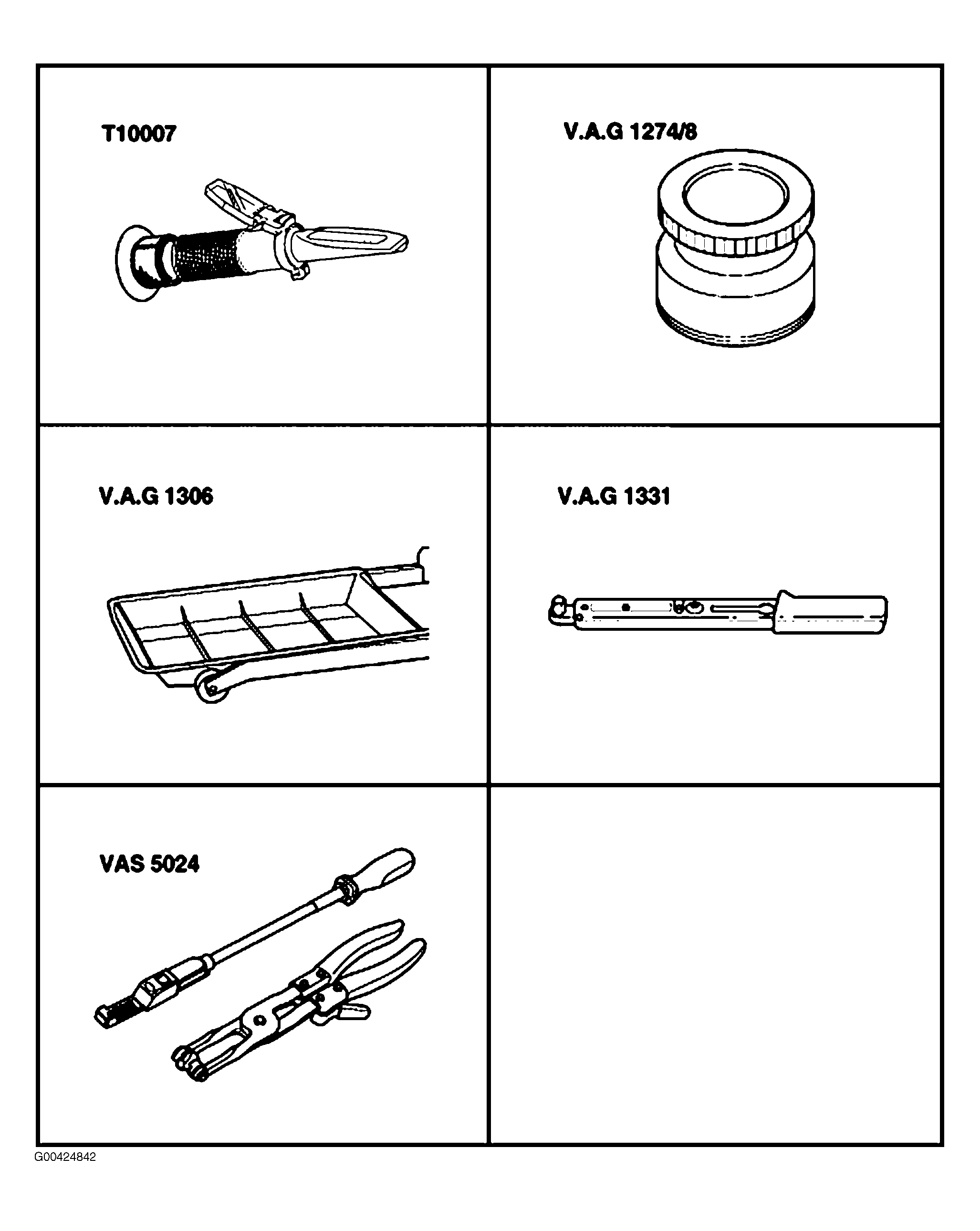

Fig 1: Cooling System Draining & Filling Special Tools

Courtesy of VOLKSWAGEN UNITED STATES, INC.
