Radiator grille, removing and installing

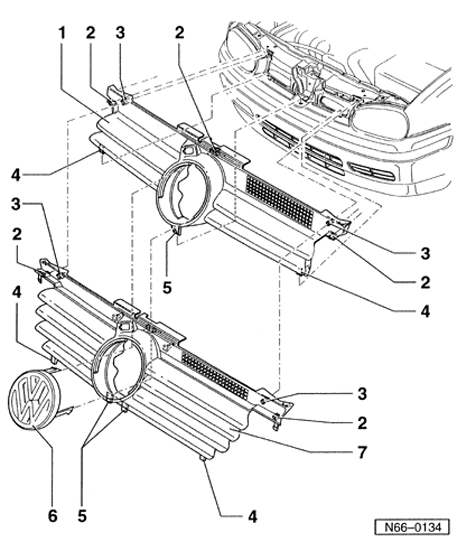

Assembly overview

1 - Radiator grille

• Golf
• Material-ASA

2 - Catches

3 - Cross pins

4 - Retaining pins

5 - Center locating point

6 - VW emblem

• Clipped in to radiator grille

7 - Radiator grille

• Jetta
• Material-ASA

Removing

• Disconnect release lever from hood lock. Refer to Release lever, removing  .
• Release retaining clips using a screwdriver.
• Remove cross pins from lock carrier and remove radiator grille upward.

Installing

• Align radiator grille according to center locating point , insert lower pins into bumper cover and clip in upper area.
