Oil Pump With Balance Shaft Drive Assembly Overview

WARNING: This page is about a different car, the 2008 Volkswagen Jetta, 2008 Volkswagen GLI, 2007 Volkswagen Jetta, and 2006 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

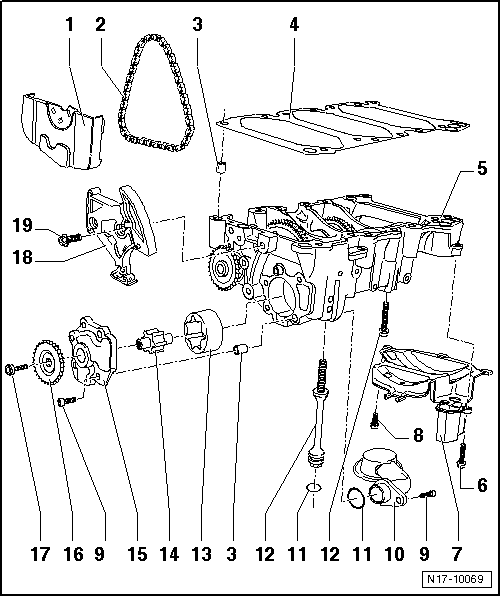

Fig 1: Identifying Oil Pump With Balance Shaft Drive Assembly Overview
GWWN17-10069Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Chain Guard
  2. Chain
    • Mark direction of travel (installed position) using a color marking before removing.
  3. Alignment Pin
  4. Intermediate Plate
  5. Oil Pump with Balance Shaft Drive
    • Before installing, check to be sure both alignment pins for centering are present.
  6. Bolt, 9 Nm
  7. Cover
    • Prevents the engine oil from foaming up.
  8. Bolt, 40 Nm
  9. Bolt, 8 Nm
  10. Oil Intake Pipe
    • Clean the strainer if contaminated.
  11. O-ring
    • Always replace.
  12. Bolt, 15 Nm + 90° (1/4) additional turn
    • Always replace.
    • Note the different length of bolts. Refer to Figure.
  13. Outer Rotor
    • Check the contact surfaces for groove buildup.
    • Marking must be visible.
  14. Inner Rotor
    • Check the contact surfaces for groove buildup.
  15. Oil Pump Cover
  16. Chain Sprocket
  17. Bolt, 20 Nm + 90° (1/4) additional turn
    • Always replace.
  18. Chain Tensioner with Tensioning Rail
  19. Bolt, 15 Nm
