Special Tools

WARNING: This page is about a different car, the 2008 Volkswagen Jetta, 2008 Volkswagen GLI, 2007 Volkswagen Jetta, and 2006 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Release tool T10060A

Fig 1: Identifying Locking Pin T10060 A
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Flywheel retainer 3067

Fig 2: Identifying 3067 Counter-Hold Tool
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Puller T10055

Fig 3: Identifying Puller T10055
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 4: Identifying Special Tools -- Crankshaft Seal, Ribbed Belt Side, Replacing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Seal remover 3203
Counter support 3415
Assembly tool T10053
Torque wrench (5-50 Nm) VAG 1331
Torque wrench (40-200 Nm) VAG 1332

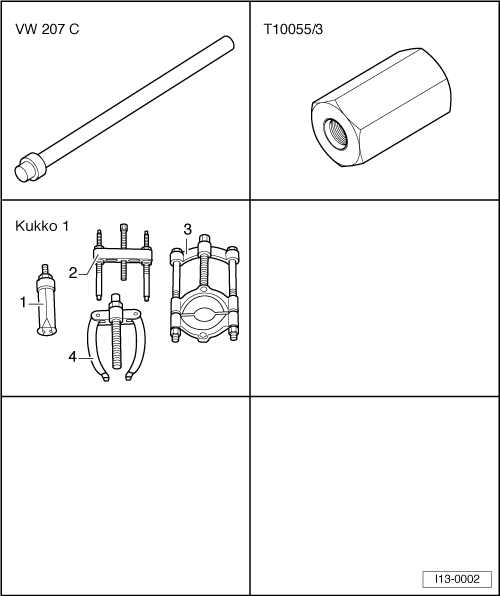

Fig 5: Identifying Special Tools -- Pulling Out Needle Bearings From Crankshaft And Driving In (Vehicles With Direct Shift Transmission)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Drift VW 207C or centering mandrel 3176
Adapter T10055/3
Kukko extractor 14.5-18.5 mm 21/2 -1-
