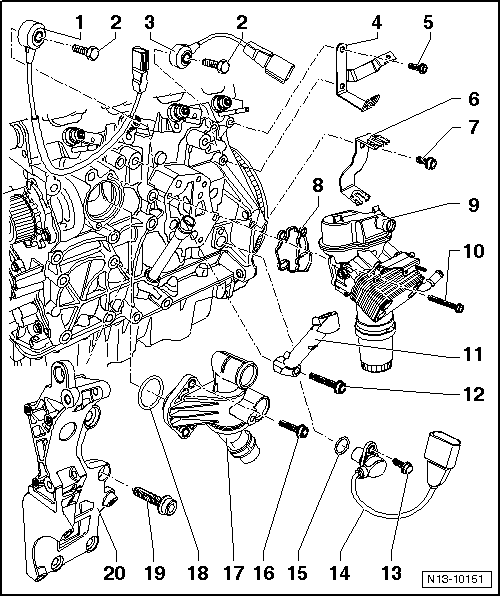

Cylinder Block And Components Overview
WARNING: This page is about a different car, the 2008 Volkswagen Jetta, 2008 Volkswagen GLI, 2007 Volkswagen Jetta, and 2006 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Knock Sensor (KS) 1 -G61-
- To remove, the coolant thermostat housing must be removed. Refer to COOLANT THERMOSTAT HOUSING WITH COOLANT THERMOSTAT .
- Contacts are gold plated.
- Bolt, 20 Nm
- Tightening specification affect function of the KS.
- Knock Sensor (KS) 2 -G66-
- To remove, the oil filter bracket must be removed. Refer to OIL FILTER BRACKET .
- Contacts are gold plated.
- Wire Bracket
- Bolt
- Wire Bracket
- Bolt
- Gasket
- Always replace
- Oil Filter Bracket with Attachments
- Disassembling and assembling, refer to OIL FILTER BRACKET ASSEMBLY OVERVIEW .
- Bolt, 15 Nm + 90° (1/4) additional turn
- Always replace.
- Intake Manifold Support
- Bolt, 25 Nm
- Bolt, 10 Nm
- Engine Speed (RPM) Sensor -G28-
- Seal
- Always replace.
- Bolt, 15 Nm
- Coolant Thermostat Housing with Thermostat
- Removing and installing, refer to COOLANT THERMOSTAT HOUSING WITH COOLANT THERMOSTAT .
- O-ring
- Always replace.
- Bolt, 40 Nm
- Tightening sequence, refer to Figure.
- Accessory Bracket
