Special Tools

WARNING: This page is about a different car, the 2008 Volkswagen Jetta, 2008 Volkswagen GLI, 2007 Volkswagen Jetta, and 2006 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Adapter VAG 1687/5
Ultrasonic measuring device VAG 1842
Testing unit for turbocharger VAG 1687

Fig 1: Identifying Testing Unit For Turbo Charger V.A.G 1687
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 2: Identifying Special Tools -- Turbocharger Vacuum Diaphragm, Adjusting

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Dial gauge holder VW 387
Hand vacuum pump VAS 6213
Pressure control valve VAS 6342
Turbocharger tester VAG 1397A
Dial gauge (0-30 mm) VAS 6341/1
Dial gauge extension (30 mm) VAS 6341/3
Flat pickup VAS 6341/4

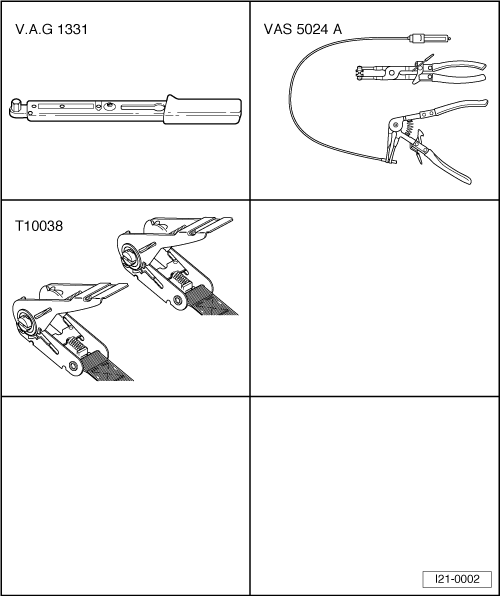

Fig 3: Identifying Special Tools -- Turbocharger, Removing And Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Torque wrench (5-50 Nm) VAG 1331
Spring type clip pliers VAS 5024A
Tensioning strap T10038
