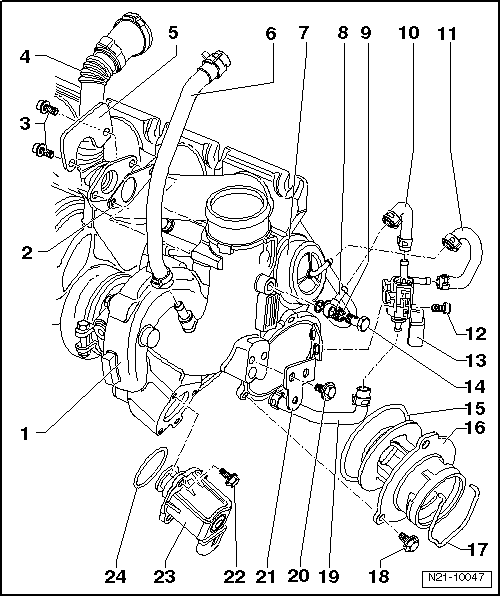

Turbocharger Recirculating Valve And WASTEGATE Bypass Regulator Valve Assembly Overview
WARNING: This page is about a different car, the 2008 Volkswagen Jetta, 2008 Volkswagen GLI, 2007 Volkswagen Jetta, and 2006 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Turbocharger
- Removing and installing, refer to TURBOCHARGER .
- Gasket
- Always replace.
- Bolt, 9 Nm
- Crankcase Ventilation Line
- Heat Shield
- Connecting Hose
- With heat shield.
- Vacuum Diaphragm
- Removing and installing, refer to TURBOCHARGER VACUUM DIAPHRAGM .
- Adjusting, refer to TURBOCHARGER VACUUM DIAPHRAGM, ADJUSTING .
- Ring Connection
- Seal
- Always replace.
- Hose
- Hose
- Bolt, 3 Nm
- Wastegate Bypass Regulator Valve -N75-
- Banjo Bolt, 8 Nm
- Seal
- Always replace
- Connection
- Securing Clip
- Bolt, 7 Nm
- Hose
- Bolt, 7 Nm
- Bracket
- Bolt, 7 Nm
- Turbocharger Recirculating Valve -N249-
- Note the installed position, refer to Fig 2.
- Seal
- Always replace
-- Note the installed position -arrows-.
