Vehicle Data Label

Explanatory Notes for "PR.-No." on Vehicle Data Plate

Depending on engine and equipment, various suspensions are installed. They are indicated by the PR numbers.

PR numbers determine the allocation of specified values for vehicle.

Suspension version installed in vehicle is indicated on vehicle data plate by corresponding PR no. for front axle.

The vehicle data label can be found in the spare wheel well as well as in the Maintenance booklet.

Sample Vehicle Data Label

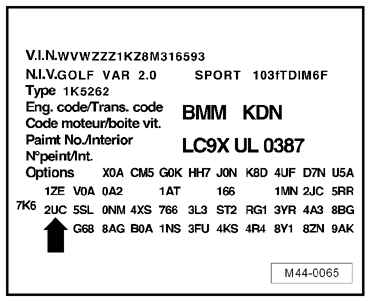

Fig 1: Identifying Vehicle Data Label

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

In this example the vehicle is equipped with the sport chassis 2UC -arrow-.
