Wheel Bearing Housing Bonded Rubber Bushing: Removing

-- Remove the wheel.

-- Remove coil spring. Refer to COIL SPRING .

-- Remove wheel bearing/wheel hub unit. Refer to WHEEL BEARING AND WHEEL HUB .

-- Remove cover plate.

-- Remove threaded connection -arrow- for lower transverse link -1-.

Fig 1: Locating Bolt For Lower Transverse Link
GWWA42-0423Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Pressing Out Bonded Rubber Bushing

-- Install special tools as shown in illustration.

Fig 2: Identifying Special Tool Assembly
GWWA42-0434Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Nut 3346/3
  2. 3301
  3. Tube 3301/3
  4. 41 - 501
  5. Thrust piece 3350/1
  6. Spindle 3346/2

-- Turn the spindle and remove the bonded rubber bushing.

Pulling In Bonded Rubber Bushing

-- Install special tools as shown in illustration.

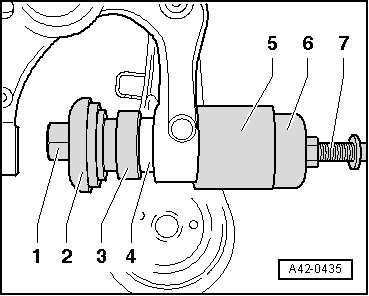

Fig 3: Identifying Special Tools To Pull In Bonded Rubber Bushing
GWWA42-0435Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Nut 3346/3
  2. 3301
  3. 30 - 506 B
  4. Bonded rubber mount
  5. 3160
  6. Thrust piece 3350/1
  7. Spindle 3346/2

-- Install bonded rubber bushing by turning support arm bearing installation tool.

NOTE:

Do not use lubricant!

Insert bearing with care so it is not canted.
