Front Belt Latch

NOTE:

The following describes removing and installing the seat belt latch on the left seat. Removing and installing the right seat belt latch is identical.

Removal

-- Mount the VAS 6136 on the VAS 6095.

-- Remove front seat. Refer to FRONT SEAT .

-- Attach the seat to the VAS 6136.

-- Position seat into rearmost seat position.

-- Disconnect wiring harness to seat frame seat belt latch.

-- Remove cover cap from seat rails.

-- Remove bolt -1- (20 Nm).

NOTE:

Bolt is micro-encapsulated and must be replaced after each loosening.

Before installing the new bolt, threads on nut must be cleaned, re-cut if necessary.

-- Pull seat belt latch -2- out of mount in seat rail -arrow-.

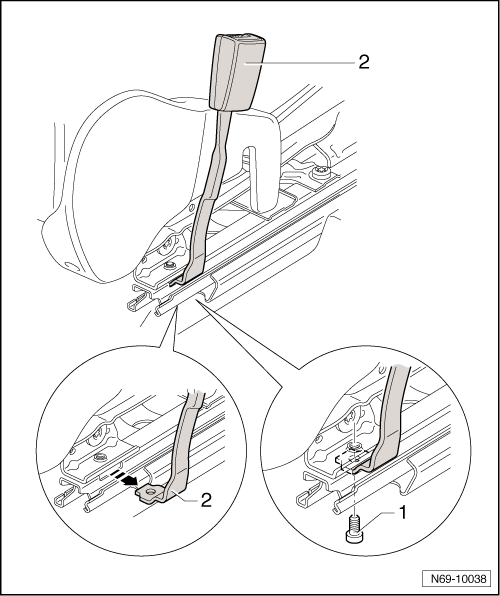

Fig 1: Identifying Belt Latch Removing/Installing Components (4-Door)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installation

-- To install, perform the steps used for removal in reverse order.
