Special Tools

Special Tools And Workshop Equipment Required

• Hand drill with plastic brush attachment
• Protective glasses
• Flat scraper
• Silicone sealant D 176 404 A2

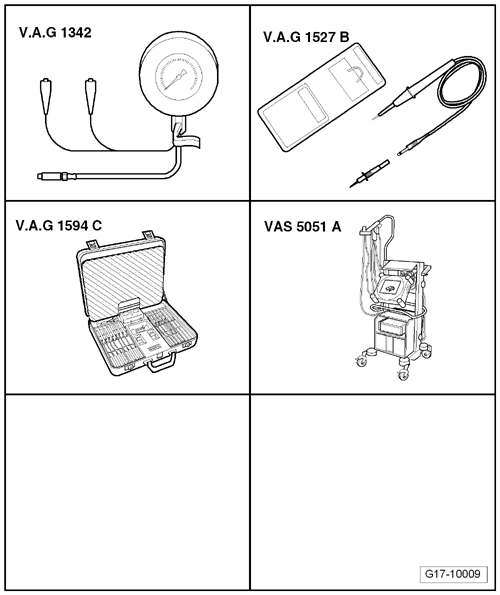

Fig 1: Identifying Special Tools -- Oil Pressure And Oil Pressure Switch, Checking

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Oil pressure gauge V.A.G 1342
• Voltage tester V.A.G 1527 B
• Connector test set V.A.G 1594 C
• Vehicle diagnostic, testing, and information system VAS 5051

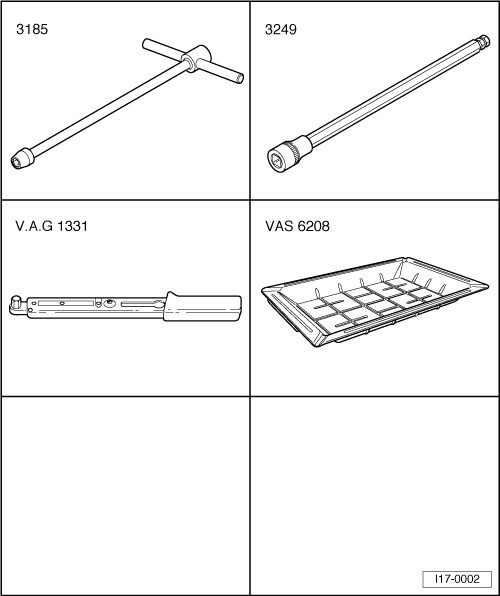

Fig 2: Identifying Special Tools -- Oil Pan, Removing And Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• SW 10 hex ball socket 3185
• 5 mm socket 3249 or T10058
• Torque wrench V.A.G 1331
• Drip tray for workshop crane VAS 6208

Fig 3: Identifying Special Tools -- Oil Filter Bracket With Oil Cooler, Removing And Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Hose clamps up to 25 mm dia.3094
• Torque wrench V.A.G 1331
• Torque wrench V.A.G 1410
• Spring-type clip pliers VAS 5024A
• Drip tray for workshop crane VAS 6208
