Oil Supply Line Assembly Overview

WARNING: This page is about a different car, the 2006 Volkswagen Jetta and 2005 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

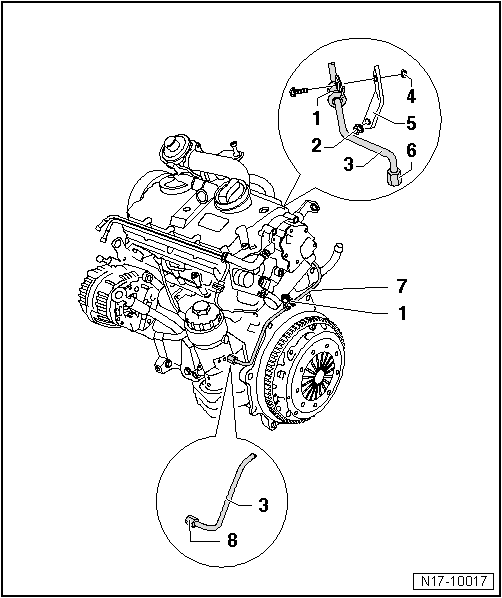

Fig 1: Oil Supply Line To Turbocharger, Assembly Overview
GWWN17-10017Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Retaining clip
  2. 25 Nm
  3. Oil supply line
    • To turbocharger
  4. 10 Nm
  5. Bracket
  6. Union nut, 22 Nm
  7. 10 Nm
  8. Union nut, 22 Nm
