Special tools and workshop equipment required

Cable tie
Engine support bridge 10 - 222 A

Fig 1: Identifying 10-222A Engine Support Bridge With 10-222A/8 Bracket For Engine
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque wrench V.A.G 1332

Fig 2: Identifying Torque Wrench 40-200 Nm VAG 1332
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 3: Identifying Special Tools -- Engine, Securing To Assembly Stand

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Holding fixture VW 313
Engine and transmission holder VW 540
Lifting tackle 2024 A
Engine/transmission jack V.A.G 1383 A
Shop crane VAS 6100

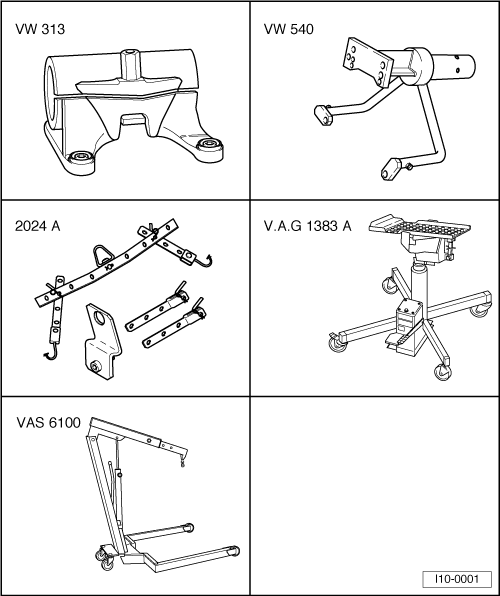

Fig 4: Identifying Special Tools - Engine, Removing And Installing (1 Of 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Lifting tackle 2024 A
Engine mount T10012
Holding fixture VW 313
Engine and transmission holder VW 540
workshop crane VAS 6100 or
Shop crane V.A.G 1202 A
Drip tray V.A.G 1306 or drip tray for workshop crane VAS 6208

Fig 5: Identifying Special Tools - Engine, Removing And Installing (2 Of 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Torque wrench V.A.G 1331
Torque wrench V.A.G 1332
Engine/transmission jack V.A.G 1383 A
Spring-type clip pliers VAS 5024A
Step ladder VAS 5085
