Engine, Securing To Assembly Stand

WARNING: This page is about a different car, the 2006 Volkswagen Jetta and 2005 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Holding fixture VW 313
Engine and transmission holder VW 540
Lifting tackle 2024 A
Engine/transmission jack V.A.G 1383 A
Shop crane VAS 6100

Secure engine to holding fixture VW 313 of assembly stand using holding fixture VW 540 when performing repair work.

Procedure

-- Move engine/transmission jack V.A.G 1383A on a workbench.

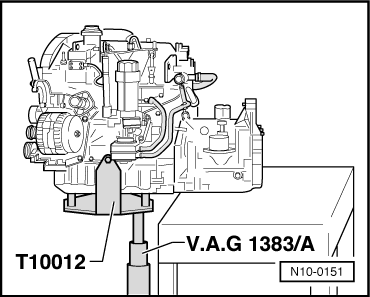

Fig 1: Identifying Engine/Gearbox Jack V.A.G 1383A Moved To Workbench

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lower the engine/transmission assembly so that transmission makes contact.

-- Remove connecting bolts for engine/transmission.

-- Press transmission off from engine.

-- Hook the engine sling 2024 A as follows and lift the engine using workshop crane VAS 6100 or workshop crane V.A.G 1202 A out of the engine/transmission jack V.A.G 1383 A.

Fig 2: Identifying Lifting Tackle 2024 A Attached To Engine

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Belt pulley side: 2. Bore of the hole rail in position 1

Flywheel side: 4. Bore of the hole rail in position 8

WARNING:

Use securing pins at hooks and pins.

NOTE:

The peg positions on the carrying strap marked with 1 through 4 face the belt pulley.

The bores in the hole rail are counted from the hook.

-- Secure engine with holding fixture VW 540 on holding fixture VW 313.
