Ribbed Belt TENSIONER

Removing

-- Remove the ribbed belt. Refer to RIBBED BELT .

-- Loosen the clamp -2-, lift the circlip -1- and remove the charge air cold side hose.

Fig 1: Identifying Clamp -2- And Circlip -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the fan shroud and fans. Refer to FAN SHROUD AND FANS .

-- Remove the bolts -arrows- from the charge air pipe and disconnect the connector -1- from the charge air pressure sensor -G31-.

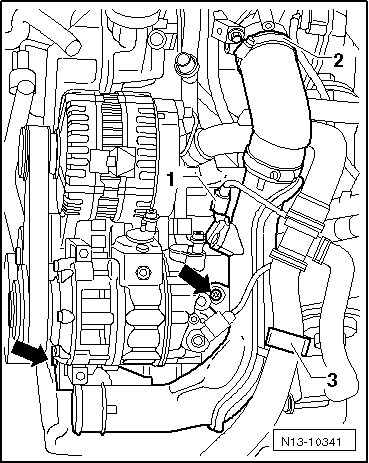

Fig 2: Identifying Clamp To Open To Free Up Charge Air Pipe -3-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the clamp -2-, free up the coolant hose -3- and remove the charge air pipe.

Fig 3: Identifying Bolt To Remove

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -2- and remove the belt tensioner -1-.

Fig 4: Identifying Bolt And Belt Tensioner

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

Installation is performed in reverse order. When doing this note the following:

• Replace the bolt for the belt tensioner.
• Tightening specifications, refer to RIBBED BELT OVERVIEW .
• Install the ribbed belt. Refer to RIBBED BELT .
