Special Tools

WARNING: This page is about a different car, the 2010 Volkswagen Jetta and 2009 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Engine Bung Set VAS 6122
Lifting tackle 3033
Hose Clamps Up to 25 mm Dia.3094
Torque Wrench (40-200 Nm) V.A.G 1332
Step Ladder VAS 5085
Engine and Transmission holder VAS 6095
Wrench SW 13 T10384
Universal Mounting VAS 6095/1
Drip Tray for VAS 6100 VAS 6208

Fig 1: Identifying Drip Tray For Shop Crane VAS 6208
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Transportation Lock T10404

Fig 2: Identifying Transportation Lock T10404
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Shackle 10-222 A/12

Fig 3: Identifying Shackle 10 - 222 A/12
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Shop Crane - Load Cap = 700-1200 KG VAS 6100

Fig 4: Identifying Shop Crane VAS 6100
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

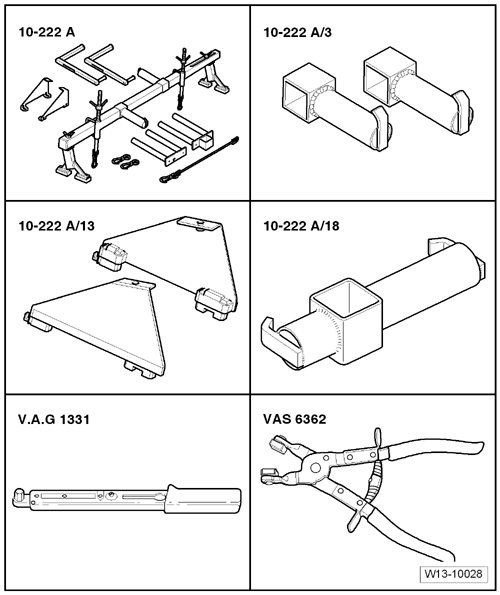

Fig 5: View Of Special Tools And Workshop Equipment Required

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Engine Support bridge 10-222 A
Engine Support Adapter 10-222 A/3
Adapter 10-222 A/13
Adapter 10-222 A/18
Torque Wrench (5-50 Nm) V.A.G 1331
Hose Clip Pliers VAS 6362
