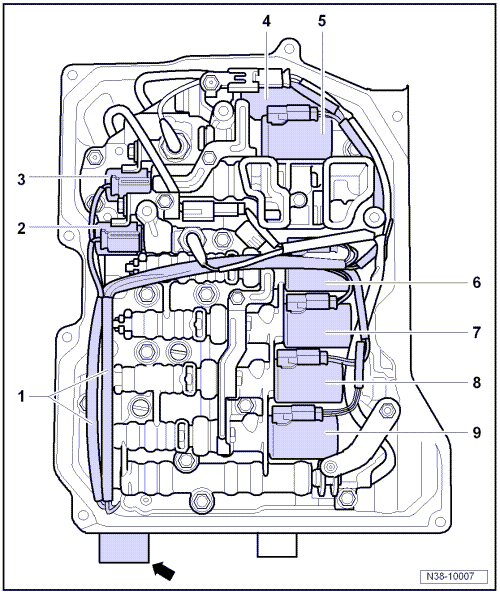

Solenoid Valve Designation
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen Golf, 2008 Volkswagen Jetta, and 2008 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
- Wiring Harness for the Solenoid Valve with 14 Pin Connector -arrow-
- Removing and installing, refer to WIRING HARNESS WITH 14 PIN CONNECTOR .
- Solenoid Valve 1 -N88-
- Solenoid Valve 2 -N89-
- Solenoid Valve 4 -N91-
- Solenoid Valve 6 -N93-
- Solenoid Valve 5 -N92-
- Solenoid Valve 9 -N282-
- Solenoid Valve 10 -N283-
- Solenoid Valve 3 -N90-
