Sensor Designation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen Golf, 2008 Volkswagen Jetta, and 2008 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

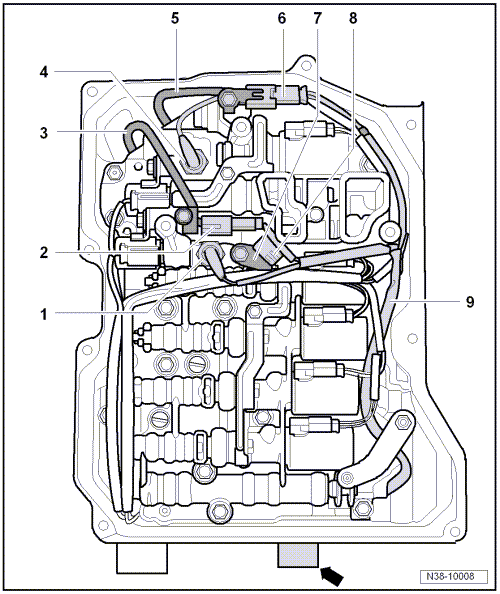

Fig 1: Identification Of Sensors
GWWN38-10008Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Automatic Transmission Hydraulic Pressure Sensor 1 -G193-
    • Not installed in all transmissions.
  2. Transmission Input Speed Sensor -G182- Connector
  3. Transmission Input Speed Sensor Wire
  4. Automatic Transmission Hydraulic Pressure Sensor 2 -G194-
    • Not installed in all transmissions.
  5. Transmission Output Speed Sensor -G195- Wire
  6. Transmission Output Speed Sensor Connector
  7. Transmission Fluid Temperature Sensor -G93- Bracket
  8. Transmission Fluid Temperature Sensor
  9. Wiring Harness for the Sensor with 8 Pin Connector -arrow-
