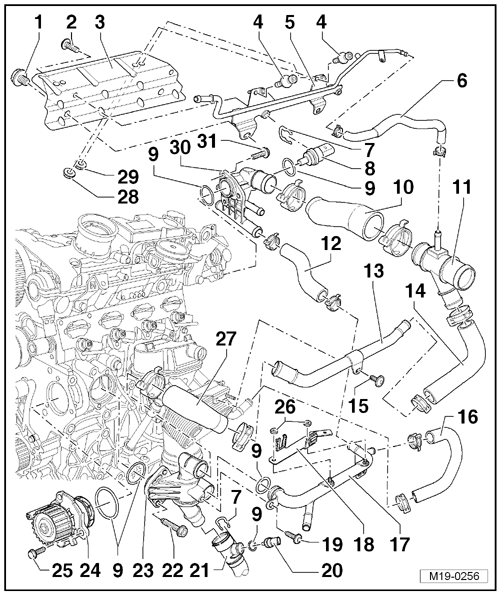

Cooling System Assembly Overview, Engine Side
WARNING: This page is about a different car, the 2008 Volkswagen Jetta, 2008 Volkswagen GLI, 2007 Volkswagen Jetta, and 2006 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt, 40 Nm
- Bolt, 30 Nm
- Heat Shield
- Ball Head Bolt, 3.5 Nm
- For the engine cover.
- Coolant Pipe
- Connecting Hose
- Retaining Clip
- Engine Coolant Temperature (ECT) Sensor -G62-
- O-ring
- Always replace.
- Connecting Hose
- Connecting Piece
- Connecting Hose
- Front Coolant Pipe
- Removing and installing, refer to COOLANT PIPES .
- Connecting Hose
- Bolt, 5 Nm
- Connecting Hose
- Rear Coolant Pipe
- Removing and installing, refer to COOLANT PIPES .
- Bracket
- Bolt, 5 Nm
- Engine Coolant Temperature (ECT) Sensor (on Radiator) -G83-
- Connection with Hose
- Bolt, 15 Nm
- Coolant Thermostat Housing
- With coolant thermostat.
- Coolant thermostat, checking.
- Starts to open 87 °C (188.6 °F).
- Coolant Pump
- Removing and installing, refer to COOLANT PUMP .
- Bolt, 15 Nm
- Nut, 8 Nm
- Connecting Hose
- Nut, 3.5 Nm
- For the ball head bolt.
- Nut, 6 Nm
- For the coolant pipe.
- Coolant Flange
- Bolt, 10 Nm
