Special tools and workshop equipment required

Fuel system tester (smoke tester) KLI 9210
Hose adapter KLI 9210/55-1
Vehicle diagnosis, testing and information system VAS 5051B, VAS 5052 or VAS 5053
Fuel extracting device VAS 5190
Hose clamps up to 25 mm diameter3094

Fig 1: Identifying 3094 Hose Clamps
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Release tool T10238

Fig 2: Identifying Release Tool T10238
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque wrench (5-60 Nm) VAG 1783

Fig 3: Identifying Torque Wrench V.A.G 1783
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Drip tray for VAS 6100VAS 6208

Fig 4: Identifying Drip Tray For Shop Crane VAS 6208
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine and transmission jack VAG 1383A

Fig 5: Identifying Engine & Transmission Jack VAG 1383 A
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Turbocharger tester VAG 1397A

Fig 6: Identifying Turbocharger Tester V.A.G 1397 A
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 7: Identifying Special Tools - Fuel Pump, Checking (1 Of 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

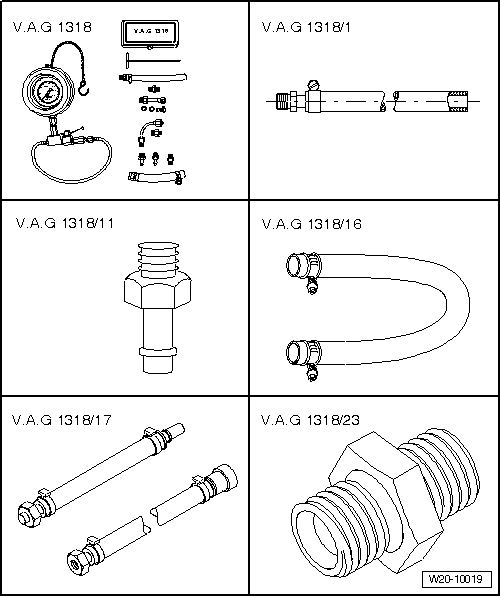

Special tools and workshop equipment required

Fuel injector pressure gauge VAG 1318
pressure gauge adapter VAG 1318/1
Adapter VAG 1318/11
Hose adapter VAG 1318/16
Adapter set VAG 1318/17
Fuel line feed adapter VAG 1318/23

Fig 8: Identifying Special Tools -- Fuel Pump (FP), Checking (2 Of 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

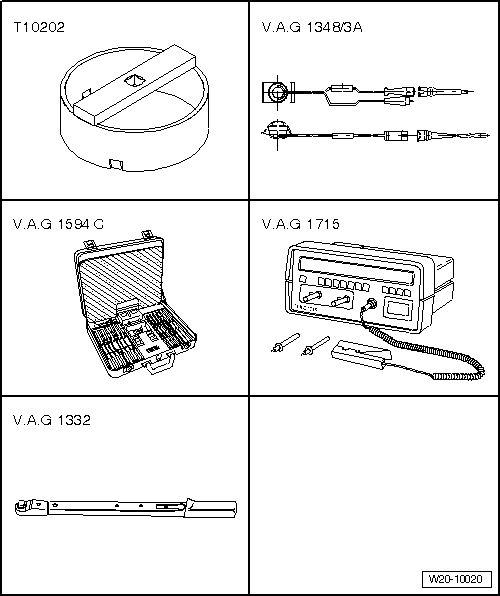

Special tools and workshop equipment required

WrenchT10202
Remote control connection VAG 1348/3A
Connector test set VAG 1594C
Multi-meter VAG 1715
Torque wrench (5-50 Nm) VAG 1332
Voltage tester VAG 1527B
Test instrument adapter/DSO (5 pin) VAS 5565
Measuring container
