EGR Cooler Assembly Overview

WARNING: This page is about a different car, the 2006 Volkswagen Jetta and 2005 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

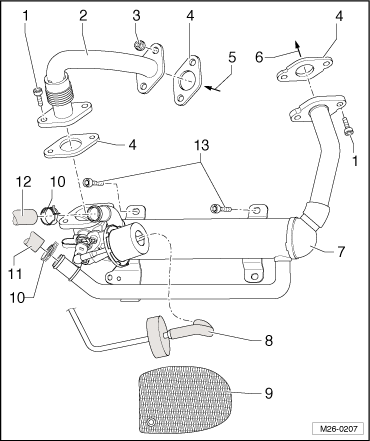

Fig 1: Identifying EGR Cooler Assembly Overview
GWWM26-0207Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. 22 Nm
  2. Connecting pipe
  3. 22 Nm
    • Replace
  4. Gasket
    • Replace
  5. To cooler for exhaust gas recirculation
  6. To Intake manifold
  7. Cooler for Exhaust Gas Recirculation (EGR)
  8. Pipe/hose line
  9. Heat shielding
  10. Spring-type clip
  11. Coolant hose
    • To cooler for exhaust gas recirculation
  12. Coolant hose
    • From cooler for Exhaust Gas Recirculation (EGR)
  13. 10 Nm
