Exhaust Camshaft Seal

WARNING: This page is about a different car, the 2008 Volkswagen Jetta, 2008 Volkswagen GLI, 2007 Volkswagen Jetta, and 2006 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Seal puller - general usage 2085
Adapter 2085/2
Retainer 3036
Assembly tool T10071
Torque wrench (40-200 Nm) VAG 1332
puller T40001 with claw T40001/6 and claw T40001/7

Removing

-- Remove the toothed belt, refer to one of the following:

-- Loosen the camshaft gear. Use the 3036 to do so.

Fig 1: Identifying Use Of Counterhold On Camshaft Gear Using 3036 Retainer

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the camshaft gear using the T40001, T40001/6 and the T40001/7.

Fig 2: Identifying Puller T40001, Claw T40001/6 And Claw T40001/7

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- To guide the 2085, install the 2085/2 into the camshaft until seated.

Fig 3: Identifying Thread Adapter 2085/2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the inner portion of the 2085 two rotations (approximately 3 mm) from the outer portion and secure with the knurled bolt.

-- Grease the threaded head of the 2085, position and screw into the oil seal as far as possible with forceful pressure.

Fig 4: Identifying Positioning And Screwing Of Bolt Into Oil Seal As Far As Possible With Forced Pressure

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the knurled bolt and turn the inner part against the camshaft until the seal is removed.

Installing

-- Do not oil the sealing lip of the seal.

-- Before installing, remove any remaining oil from the camshaft journal with a clean cloth.

-- Cover the groove on the camshaft end with adhesive tape.

-- Slide the dry seal carefully onto the camshaft end.

-- Place the T10071/1 on the camshaft end.

Fig 5: Identifying Guide Sleeve T10071/1 Placed On Camshaft Pin

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Slide the oil seal over the T10071/1 onto the camshaft end.

-- Remove the T10071/1.

-- Press in the seal until seated using the T10071. To do so, use the T10071/4.

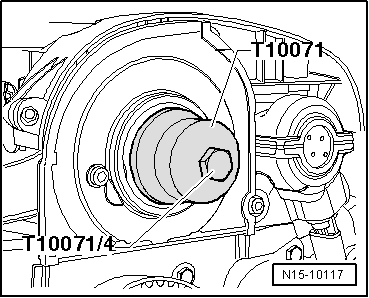

Fig 6: Identifying Pressure Sleeve T10071 To Press In Seal Up To Stop

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the camshaft gear.

Note the installed position: The thin rib on the camshaft gear points outward -arrows- and the TDC marking for cylinder 1 is visible.

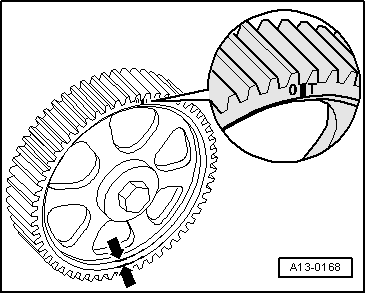

Fig 7: Identifying Camshaft Gear Thin Rib Toward Outside And TDC Marking Visible
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the fitted key into the camshaft.

-- To tighten the bolt, hold the camshaft gear in place using the 3036. Tightening specification, refer to VALVETRAIN ASSEMBLY OVERVIEW .

Fig 8: Identifying Use Of Counterhold On Camshaft Gear Using 3036 Retainer

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

When turning the camshaft, the pistons may not be at TDC for any cylinder. Valves/pistons may be damaged.

Be sure the fitted key is properly seated.

-- Install the toothed belt, refer to one of the following:

-- Install the ribbed belt. Refer to RIBBED BELT .

The rest of the assembly is basically a reverse of the removal sequence.

-- Fill the cooling system. Refer to DRAINING AND FILLING .
