Special Tools

WARNING: This page is about a different car, the 2006 Volkswagen Jetta and 2005 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Locking pliers
Electric cutter V.A.G 1561A
Wet and dry vacuum VAS 5128
Brush with plastic bristles
Vehicle diagnosis, testing and information system VAS 5051 B, VAS 5052 or VAS 5053

Fig 1: Identifying Vehicle Diagnosis, Testing And Information System VAS 5051B
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Assembly sleeve T10056

Fig 2: Identifying Assembly Sleeve T10056
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque wrench V.A.G 1783

Fig 3: Identifying Torque Wrench V.A.G 1783
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Assembly tool T10118

Fig 4: Identifying Assembly Tool T10118
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Saw set V.A.G 1561/14

Fig 5: Identifying Electric Knife V.A.G 1561 A
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hot air gun from wiring harness repair kit VAS 1978
Attachment nozzle from wiring harness repair kit VAS 1978

Fig 6: Identifying Hot Air Gun And Wiring Harness Repair Kit VAS 1978
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 7: Identifying Special Tools - Pump-Injector Unit, Removing And Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Dial gauge holder VW 387
Multi point socket 3410
Multi point socket T10054
Removal tool T10055
Torque wrench V.A.G 1331

Fig 8: Identifying Intake Manifold, Removing And Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

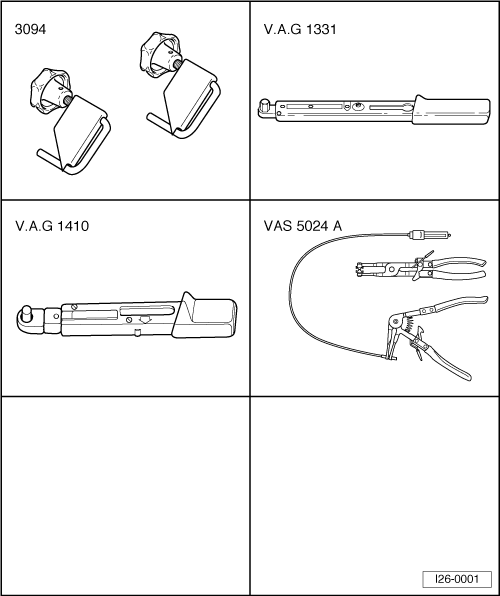

Special tools and workshop equipment required

Hose clamps up to 25 mm dia. 3094
Torque wrench V.A.G 1331
Torque wrench V.A.G 1410
Spring-type clip pliers VAS 5024A
