Instrument Cluster Indicator Lamp Symbols, Through Model Year 2009

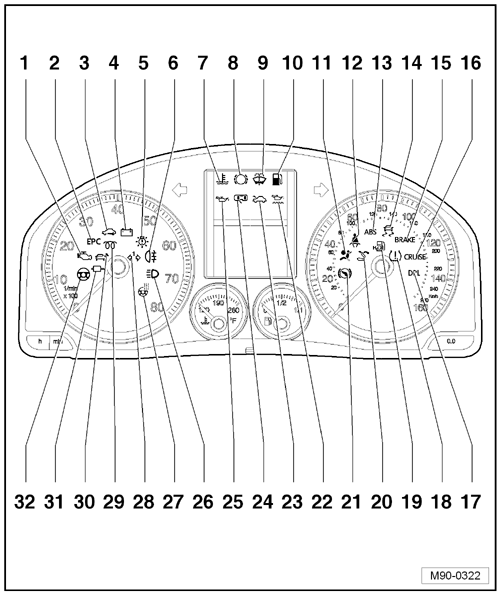

Different instrument clusters are used, depending on vehicle equipment. Therefore, the arrangement of the control lamps may deviate from the illustration.
- Malfunction Indicator Lamp (MIL) -K83-
- Warning lamp for Electronic Power Control (EPC) -K132-
- Only on gasoline vehicles.
- Anti-Theft Engine Disable Indicator Light -K115-
- Generator (GEN) Warning Lamp -K2-
- Lamp Failure Indicator Lamp -K170-
- Rear Fog Lamp Indicator Lamp -K13-
- Engine Coolant Level (ECL) Warning Lamp -K36-
- Brake Pad Wear Indicator Lamp -K32-
- Low Windshield Washer Fluid Level Indicator Lamp -K37-
- Low Fuel Level Warning Lamp -K16-
- Airbag Malfunction Indicator Lamp (MIL) -K75-
- Safety Belt Warning Lamp -K19-
- ABS Warning Lamp -K47-
- ASR/ESP Control Lamp -K155-
- Brake System Indicator Light -K118-
- Cruise Control Indicator Lamp -K31-
- Daytime Running Lamp (DRL) Indicator Lamp -K205-
- Tire Pressure Monitoring Display Indicator Lamp -K220-
- Water In Fuel
- Rear Seat Backrest Lock Indicator Lamp -K193-
- Shift Lock Indicator lamp -K169-
- Only on vehicles with automatic transmissions.
- Oil Level Indicator Lamp -K38-
- Front Hood Open Warning Lamp -K171-
- Door Ajar Indicator Lamp -K166-
- Oil Pressure Warning Lamp -K3-
- High Beam Indicator Lamp -K1-
- Steering Wheel Heater
- Trailer Operation Indicator Lamp -K18-
- Glow Plug Indicator Lamp -K29-
- Only on diesel vehicles.
- Fuel Filler Lid Lock Warning Lamp -K201-
- Diesel Particulate Filter Indicator Lamp -K231-
- Electro-mechanical Power Steering Indicator Lamp -K161-
