Separating And Connecting Brake Pedal And Booster

Special tools and workshop equipment required

Release Tool T10159

Separating

-- Remove trim on driver side. Refer to Removal and Installation .

Only on vehicles with brake light switch on mounting bracket:

-- Disconnect connector from Brake Light Switch -F-.

-- Remove brake light switch by rotating 45° toward left.

Procedure for all vehicles:

-- First press brake pedal in direction of brake booster and hold.

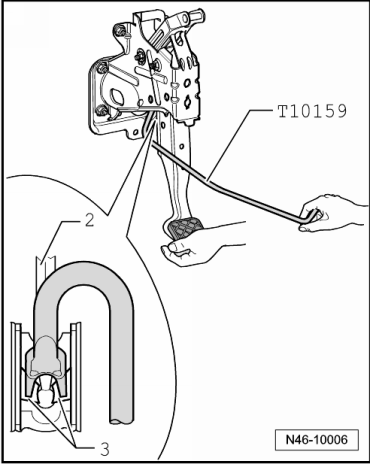

Fig 1: Identifying Separation Of Brake Pedal From Brake Booster

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

2 -

Pressure rod

3 -

Retaining lugs

-- Insert T10159 and pull in direction of driver seat. When doing this, counter-hold on brake pedal. (At this moment the pedal must not be allowed to move backward). The mounting retaining lugs -3- will thereby be pressed off the ball head of the push rod -2-.

For ease of illustration separating the brake pedal from the brake booster is shown with the pedal assembly removed.

-- Pull T10159 and brake pedal together toward the driver seat. (The brake pedal will thereby be pulled off the ball head of the push rod).

Connecting

-- Hold ball head of push rod in front of mounting and push brake pedal in direction of brake booster, so the ball head locates audibly.

Fig 2: Brake Pedal, Joining To Brake Booster

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Further installation is in the reverse sequence to removal.

-- Install and adjust Brake Light Switch -F-. Refer to BRAKE LIGHT SWITCH, THROUGH 10.05.2005 .
