Rear Brake Caliper Piston

Special tools and workshop equipment required

Removing

-- Remove piston from brake caliper by turning knurled wheel toward left.

Insert piston compressing and extracting tool so collar makes contact on piston.

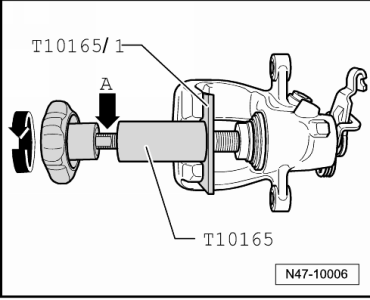

Fig 1: Identifying Piston Compressing And Extracting Tool Inserted So Collar Makes Contact On Piston

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

For pistons that are difficult to move, an open-end wrench (size 13 mm) can be applied at the appropriate wrench surface -arrow A-.

-- Remove seal using 3409.

Fig 2: Identifying Wedge 3409 To Remove Seal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

-- The surface of the piston and seal must only be cleaned with mineral spirits and then dried.

-- Thinly coat piston and seal with assembly paste G 052 150 A2 before inserting.

-- Place protective cap with outer sealing lip on piston.

Fig 3: Identifying Protective Seal With The Outer Sealing Lip On The Piston

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Using 3409, insert inner sealing lip into cylinder groove.

Fig 4: Identifying Inner Sealing Lip Inserted Into The Grove In Cylinder Using Wedge 3409

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Hold piston in front of brake caliper for this procedure.

-- Install the piston by turning knurled wheel toward right.

Fig 5: Identifying Installation Of Pistons With T10165

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- To screw in, use T10165/1 as an aid.

Insert piston compressing and extracting tool so collar makes contact on brake caliper.
When piston is misadjusted using a T10145 or if foot brake is operated, the automatic reset function of the brake caliper is compromised.
