C 38 Rear Brakes

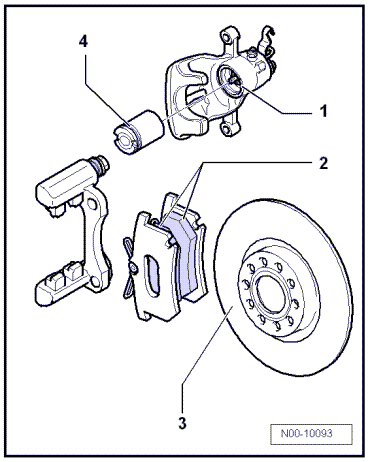

Fig 1: Exploded View Of Rear Brake C 38
GWWN00-10093Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Item PR Number 1KD
1 Brake caliper C 38 (15")
2 Brake pad, thickness mm 11
3 Brake disc ø in mm 255
Brake disc, thickness mm 10
4 Brake caliper, piston ø in mm 38
