16 Inch FN 3 Front Brakes

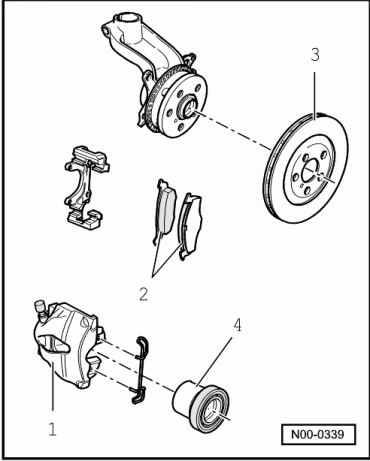

Fig 1: Exploded View Of Front Brake Calipers (FN 3)

GWWN00-0339

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item	PR Number		1LL / 1ZD / 1LV / 1LJ
1	Brake caliper		FN3 (16")
2	Brake pad, thickness	mm	14
3	Brake disc	ø in mm	312
3	Brake disc, thickness	mm	25
4	Brake caliper, piston	ø in mm	54
