Allocation Of Pr Number To Brakes: Notes
The PR number on the vehicle data label describes which brake system is installed in the vehicle.

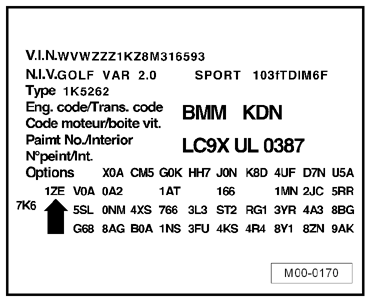

Example of a Vehicle Data Sticker:
Front wheel brakes 1ZE are installed in this vehicles -arrow-.
NOTE:
The PR number for the rear wheel brakes is not on the vehicle data plate. For information regarding each rear wheel brake installed .
The vehicle data label can be found in the spare wheel well as well as in the Maintenance information.
- The following tables show the PR number code key. This is important in order to know the brake caliper/brake disc and brake pad combination.
