Side Upholstery With Side Airbag
Removal and installation is described for right side upholstery. The same instructions apply for removal and installation for the left side upholstery.
Removal
Read the Safety Instructions for working with airbags, belt tensioners and battery cut-out units.
-- Disconnect vehicle battery. Refer to [For transmission(s) 0A4, 02E, 09G, 02Q] [For engine(s) BRM, BGP, BPY, BGQ, CBTA, CBEA, CJAA, CBUA, CCTA, CBFA] Removal and Installation
Sedan
-- Remove seat bench. Refer to SEAT BENCH .
Wagon
-- Fold the bench seat forward.
All Vehicles

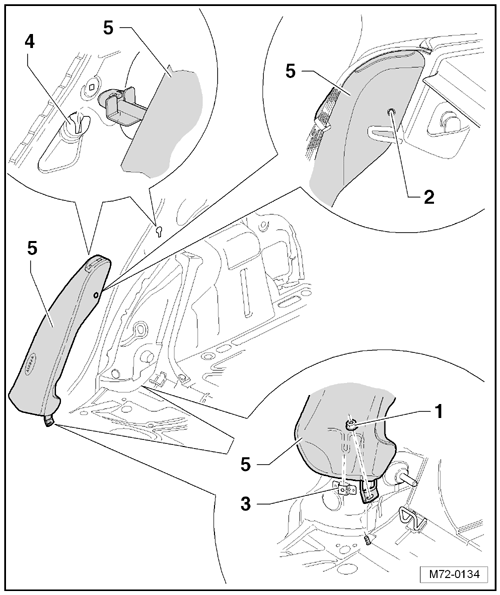

-- Remove nut -1- (8 Nm).
-- Fold backrest forward.
-- If present, remove the cover cap and loosen the bolt -2- (8 Nm).
-- Pull side upholstery -5- upward out of mounts -3- and -4- in body.
Electrostatic discharges can lead to an unintended deployment of the airbag. Therefore, mechanic must electrostatic discharge him-/herself before disconnecting harness connector. This is done, for example, by briefly touching the chassis or door striker pin.
-- Disconnect wiring harness from rear side airbag.
Installation
-- To install, perform the steps used for removal in reverse order.
-- Switch on ignition.
Make sure that no persons are in the vehicle.
-- Connect vehicle battery. Refer to [For transmission(s) 0A4, 02E, 09G, 02Q] [For engine(s) BRM, BGP, BPY, BGQ, CBTA, CBEA, CJAA, CBUA, CCTA, CBFA] Removal and Installation .
