Right Seat Trim

NOTE:

Removal and installation is described for left seat. The same instructions apply for removal and installation for the right seat.

Removal

-- Remove front seat. Refer to FRONT SEAT .

-- Press clamping pin -1- inward and remove securing clip -2-.

-- Pull seat belt latch toward outside.

NOTE:

Belt latch is not depicted in the illustration.

-- Release the retaining hook -3- and remove the trim -4- from the seat.

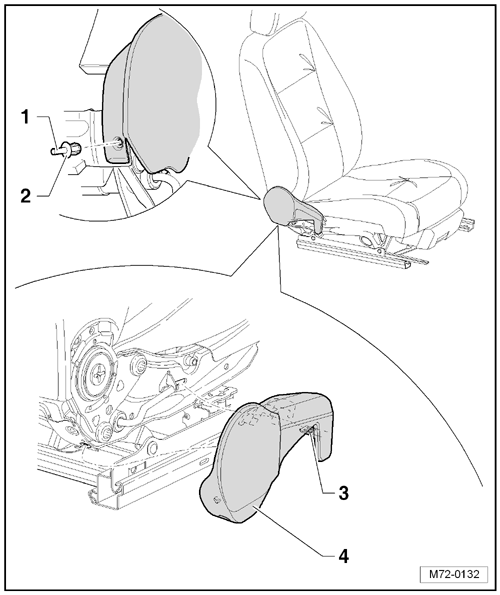

Fig 1: Identifying Right Seat Trim Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installation

-- To install, perform the steps used for removal in reverse order.
