Special Tools

Special tools and workshop equipment required

• Socket Wrench T10072
• Assembly Tool T10118
• Door Adjustment Wrench 3320 with 3320/1, 3320/2 and 3320/3
• Roller 3356
• Torque Wrench V.A.G 1331
• Adjusting Gauge 3371

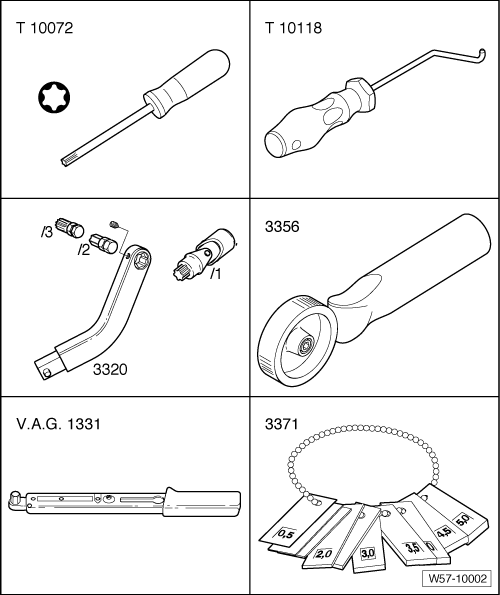

  Fig 1: Identifying Special Tools -- Front Door (1 Of 2)

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Cartridge Gun V.A.G 1628
• Cartridge Heater V.A.G 1939 A
• Trim Removal Wedge 3409
• Assembly Tool Set T10237

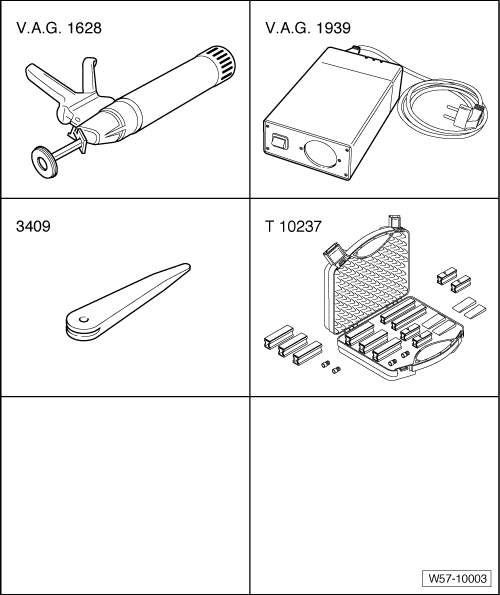

  Fig 2: Identifying Special Tools -- Front Door (2 Of 2)

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
