Front Bumper License Plate Holder

-- Mark the four places -5- on the grille that will be drilled.

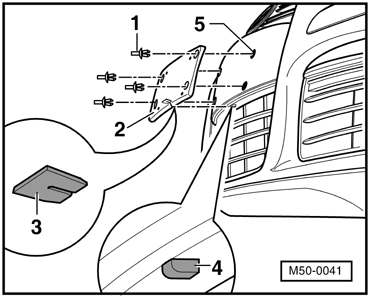

Fig 1: Small License Plate Holder, Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The correct license plate holder -2- position is achieved by placing the guide -3- on the holder in the grille recess -4-.

-- Drill out the four points -5-.

Hole diameter: 7.7 + 0.2 mm

-- Install the license plate holder with four plastic expanding rivets -1-.
