Bumper Cover With Attachments

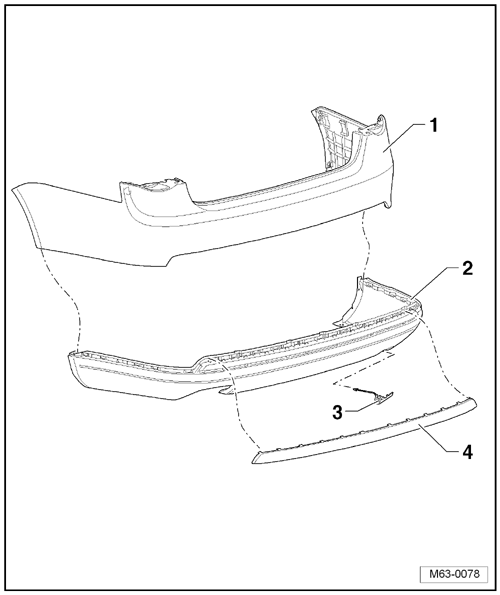

Fig 1: Rear Bumper Cover With Attachments

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bumper Cover
- PP/EPDM material
- Removing and installing, refer to REAR BUMPER COVER .
Spoiler
- Material PC/ABS
- Secured to bumper cover.
- Can only be removed when bumper cover is removed.
Towing Eyelet Cap
- Secured to bumper cover.
Protective Molding
- Secured to spoiler.
- Can only be removed when spoiler is removed.
