Bumper Carrier Overview

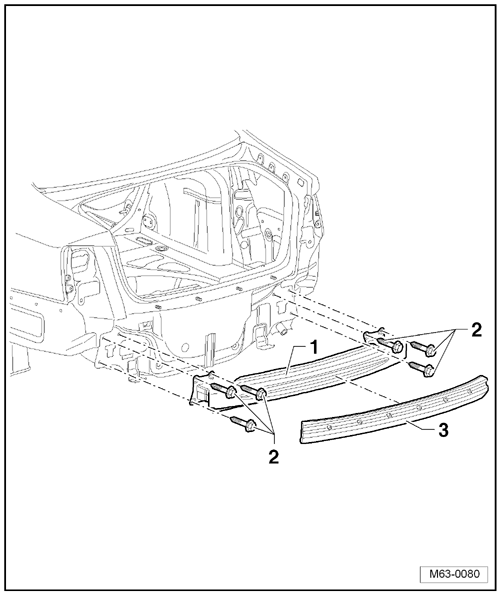

Fig 1: Bumper Carrier, Assembly Overview
GWWM63-0080Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bumper Carrier
  2. Bolt
    • 20 Nm
    • 3 on each side
  3. Foam Piece
    • Self-adhesive
