Bumper Carrier Overview

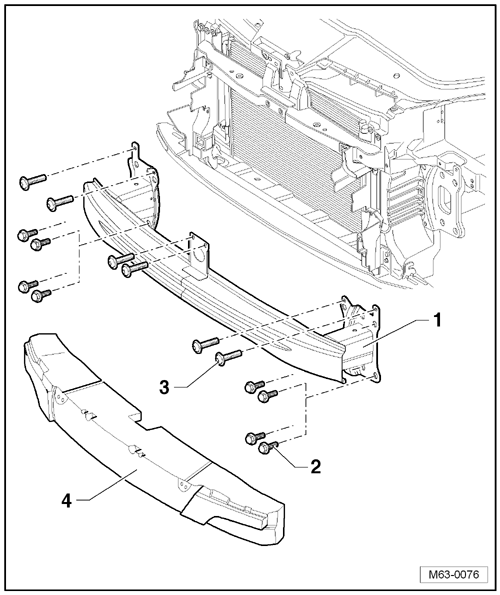

Fig 1: Bumper Carrier, Assembly Overview
GWWM63-0076Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bumper Carrier
  2. Bolt
    • 60 Nm
    • 4 on each side
  3. Bolt
    • 8 Nm
    • Quantity: 6
  4. Foam Piece
    • Self-adhesive
