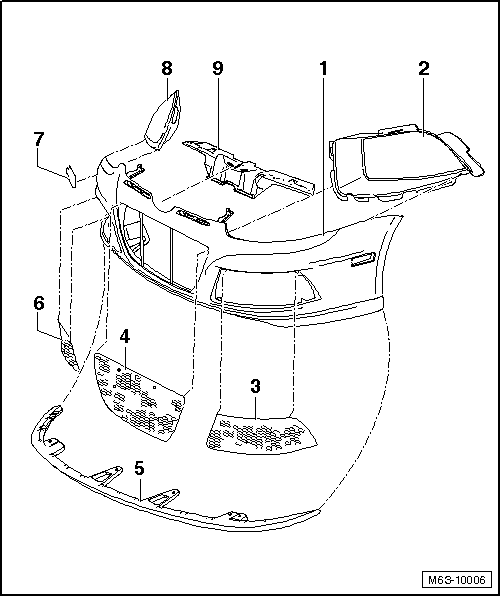

Bumper Cover Attachments
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
- Front Bumper Cover
- End Plate
- Left
- Attached from the inside with 4 metal clips.
- Remove only when bumper cover -1- has been removed.
- Vent Grille
- Tightening specification: 2 Nm
- Left
- Secured with 4 bolts from the outside.
- Center Vent Grille
- Attached from the inside with 19 metal clips.
- Remove only when bumper cover -1- has been removed.
- Spoiler Extension
- Remove only when bumper cover -1- has been removed.
- Vent Grille
- Tightening specification: 2 Nm
- Right
- Secured with 4 bolts from the outside
- Towing Eyelet Cap
- Locked inside the front bumper cover -1-.
- End Plate
- Right
- Attached from the inside with 4 metal clips
- Remove only when bumper cover -1- has been removed
- Adapter Part
- Tightening specification: 2 Nm
- Secured on the front bumper cover -1- in the center with 4 bolts from above and 4 blind rivets from below
- Quantity: 4
