Anti-Theft Alarm System Overview

NOTE:

Components of Anti-Theft Alarm System are dependent on vehicle equipment.

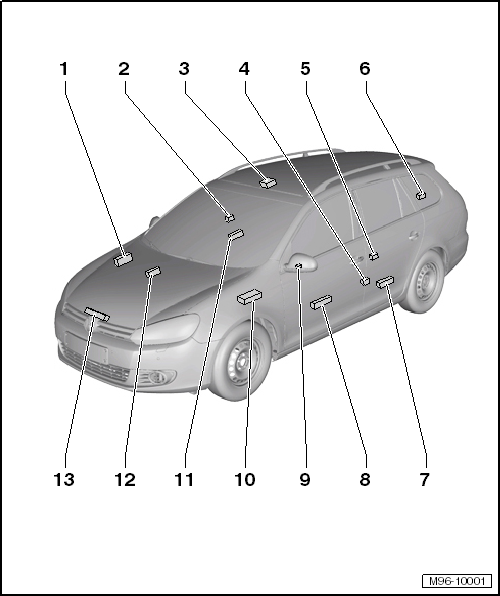

Fig 1: Anti-Theft Alarm System Component Locations
GWWM96-10001Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Alarm Horn -H12-
    • Inside the right front wheel housing.
    • Removal and installation, refer to ALARM HORN -H12- .
  2. Front Passenger Door Contact Switch -F3-
    • In Front Passenger Door Central Locking Lock Unit -F221-.
    • Removal and installation, refer to FRONT DOOR .
  3. Anti-Theft Alarm System Sensor -G578-
  4. Interior Monitoring Deactivation Switch -E267-
  5. Driver Door Contact Switch -F2-
    • In Driver Door Central Locking Lock Unit -F220-.
    • Removal and installation, refer to FRONT DOOR .
  6. Rear Lid Lock Unit -F256-
  7. Left Rear Door Control Module -J388-
  8. Driver Door Control Module -J386-
  9. Central Locking -SAFE- Indicator Lamp -K133-
  10. Vehicle Electrical System Control Module -J519-
  11. Right Rear Door Control Module -J389-
  12. Front Passenger Door Control Module -J387-
  13. Front Hood Switch -F266-
