Front Wheel Housing Liner

NOTE:

Removing and installing is described only for the left wheel housing liner. Removing and installing right wheel housing liner is similar

Removing

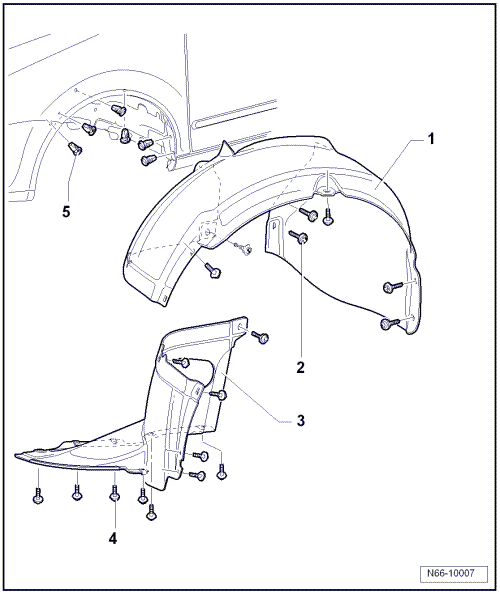

Fig 1: Front Wheel Housing Liner - Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rear part of wheel housing liner

-- Remove bolts -2- (Qty. 7).

-- Remove rear part of wheel housing liner -1-.

Front part of wheel housing liner

-- Remove bolts -4- (Qty. 11).

-- Remove front part of wheel housing liner -3-.

Installing

To install, perform the steps used for removal in reverse order.
