Timing Chain Cover Seal

WARNING: This page is about a different car, the 2009 Volkswagen Rabbit, 2008 Volkswagen Rabbit, 2007 Volkswagen Rabbit, and 2006 Volkswagen Rabbit. However, it is still accessible from the selected car via links, so may be relevant.

Conditions

The timing chain cover is removed.

Special tools and workshop equipment required

Arbor VW 195
Tube 60 mm Dia.VW 415 A
Fitting Sleeve 3241/4

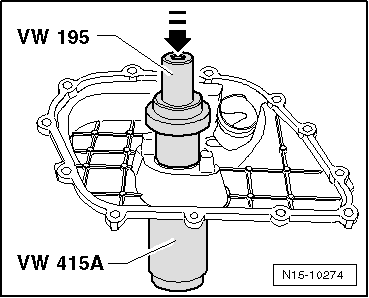

Fig 1: Driving Out Sealing Ring

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

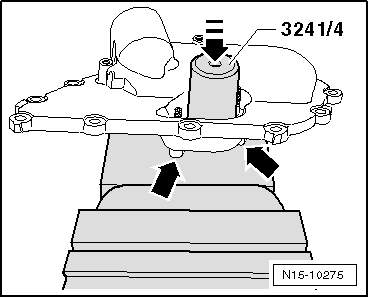

Fig 2: Driving In Seal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Support the timing chain cover with supports -arrows- on a firm surface and press in the new seal until it is seated.
