Camshaft Timing Chain Overview

WARNING: This page is about a different car, the 2009 Volkswagen Rabbit, 2008 Volkswagen Rabbit, 2007 Volkswagen Rabbit, and 2006 Volkswagen Rabbit. However, it is still accessible from the selected car via links, so may be relevant.

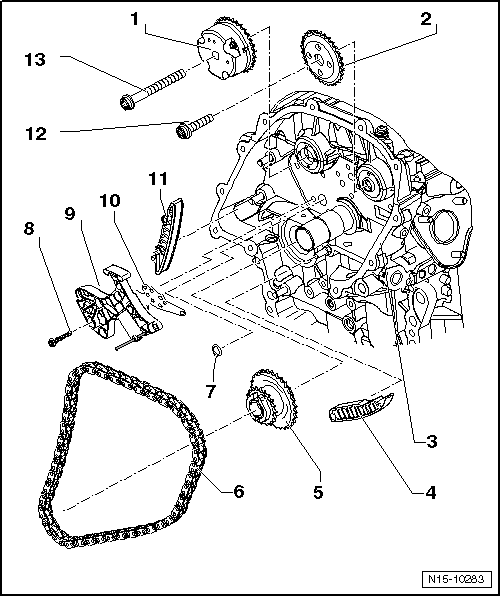

Fig 1: Camshaft Timing Chain Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Intake Camshaft Adjuster
- With the chain sprocket.
- Do not disassemble.
Exhaust Camshaft Sprocket
- Not pressed on the camshaft.
- When removing, pry off lightly, if necessary.
Cylinder Head
Tensioning Rail
- For the chain tensioner for the camshaft timing chain.
- Secured to the cylinder block.
- Oil before installing on the pin.
Double Sprocket
- Securing, refer to OIL PUMP TIMING CHAIN OVERVIEW .
Timing Chain
- Removing:
  -- Follow the procedure for the "valve timing, adjusting". Refer to VALVE TIMING, ADJUSTING .

  -- Remove the vacuum pump. Refer to VACUUM PUMP .

  -- Mark the direction of travel.
- Note when installing:
  -- Install in the original direction of rotation.

  -- The chain must lie correctly in the tensioning and guide rails.

  -- Adjust the valve timing. Refer to VALVE TIMING, ADJUSTING .
Strainer
- Always replace.
Bolt
- 10 Nm
Chain Tensioner
- Secure using a locking pin T03006.
Gasket
- Always replace.
Guide Rail
- Oil before installing on the pin.
Bolt
- 60 Nm + an additional 90° (1/4) additional turn.
- Always replace.
Bolt
- 60 Nm + an additional 90° (1/4) additional turn.
- Always replace.
